Automatic Bearing And Circlip Insertion Machine
- Product Information
Automatic Bearing and Circlip Insertion Machine is a cutting-edge solution designed to streamline the assembly processes in various industries. As a leading Manufacturer, we specialize in creating highly efficient and reliable machinery that enhances the precision and speed of bearing and circlip assembly.
Automatic Bearing and Circlip Insertion Machine is a special equipment for the motor industry. Its function is to complete the automatic installation of small motor bearings and the automatic insertion of circlips, combining the two processes into one. It only needs to feed the materials and no human operation is required. It is simple, efficient, stable and reliable, and reduces staff and increases efficiency.
Technical Specifications:
| Item | Technical Specifications |
| Function | Automatic Loading Into Bearings, Automatic Discharging |
| Size | 600*700 |
| Efficiency | 3s/Piece |
| Compatibility | Coaxial Diameter And Shaft Length Are Compatible |
| Power | 0.5kw |
Equipment Features:
1. Simple and lightweight, desktop type, equipment size 600*700mm.
2. High efficiency, 3S/piece, integrated with upper and lower processes, no need for dedicated operation.
3. Vibrating disc row feeding, convenient and easy to operate.
4. Good compatibility, long and short axes are compatible with coaxial diameter.

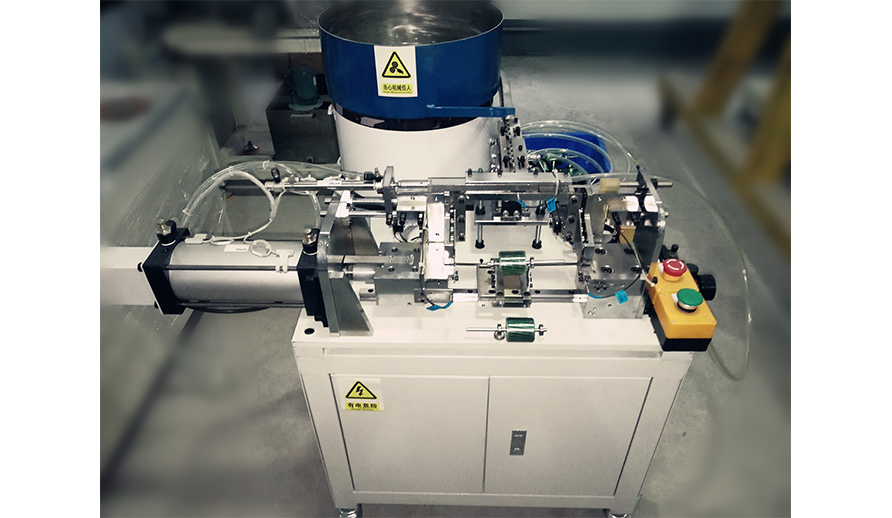

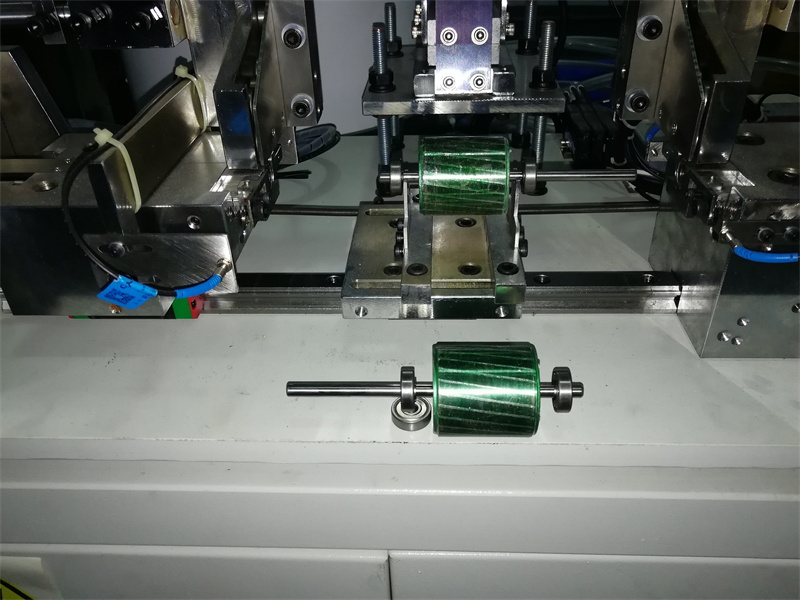

Detail Images:
