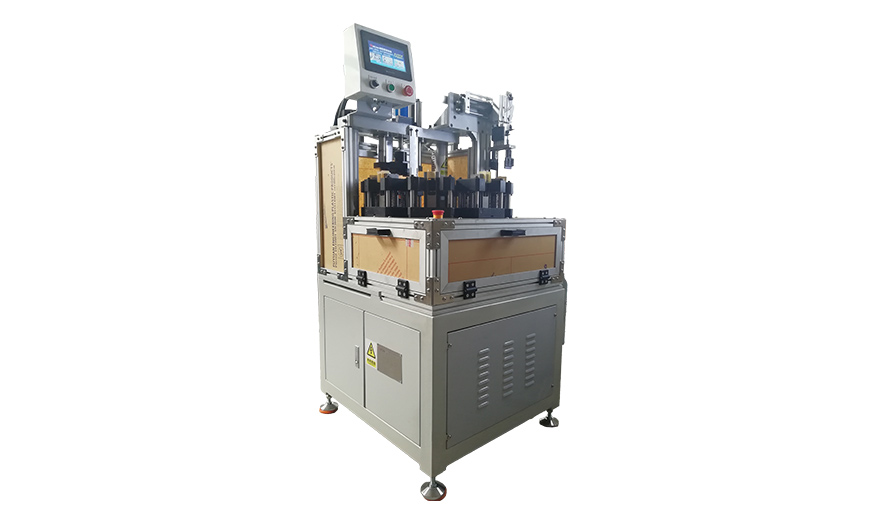

Eight-Station Stator Press And Insertion Machine
- Product Information
Eight-Station Stator Press And Insertion Machine is a high-precision, automated equipment designed to meet the demands of modern electric motor production. As a leading Manufacturer, we specialize in creating state-of-the-art machinery that enhances the efficiency and quality of stator manufacturing processes.
Multi-station stator press is engineered to provide a seamless and automated solution for the pressing and insertion of stator components. This machine is capable of performing multi-position stator riveting with precision, ensuring that each stator is assembled to the highest standards of quality and durability. The machine's design allows for an eight-station operation, significantly increasing production throughput and reducing manual labor.

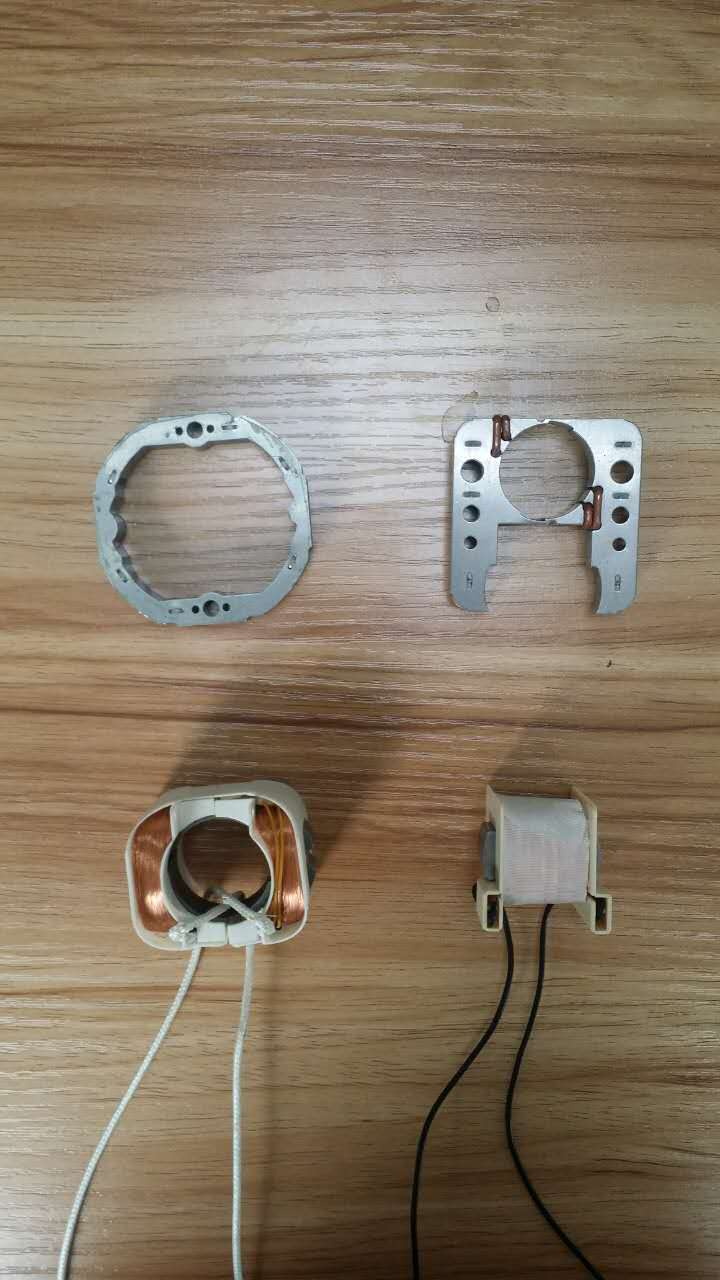

Eight-Station Stator Press And Insertion Machine is an advanced equipment launched to meet the needs of shaded-pole motors and inner-wound stator motors, and realizes the riveting of the main and auxiliary stators. It adopts an eight-point turntable structure to separate the human hands from the riveting station to improve the safety factor. The work is simple and easy to operate, and the efficiency is three times that of manual operation. At the same time, the equipment cost is relatively low.
Technical Specifications:
Item | Technical Specifications |
Function | Realize Riveting Of Main And Auxiliary Stators; Automatic Blanking |
Application Areas | Shaded Pole Motors, External Rotor Motors, Etc. |
Efficiency | 2.3-3s/Piece |
Compatibility | Change Varieties In 5 Minutes;48/58/60 Full Range Of Varieties |
Power | 2.2kW |
Equipment Features:
1. Stability: Use box-type turbine reducer + cam divider to drive the indexing plate to ensure stable operation of the equipment
2. Safety: All mechanical moving structural parts are protected with protective covers to ensure safe operation.
3. High efficiency: the production cycle can reach 2.3-3S/piece
4. Intelligence: Automatically senses materials. When there is no material at the work station, the pressure head automatically stops working.
5. Humanization: The human-machine interface displays each row of operating data, and related management work becomes simple. You only need to collect data from the human-machine interface (such as output, etc.)
