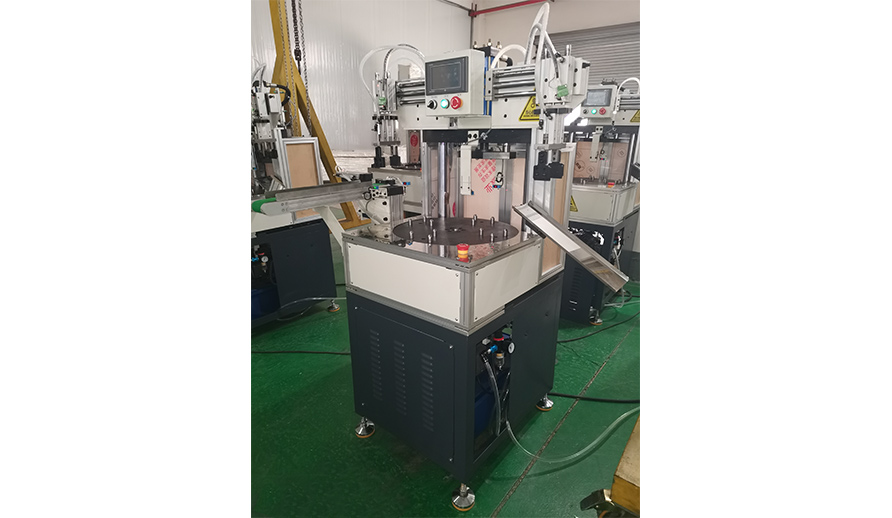

Four-Station Stator Insertion Press Machine

Four-Station Stator Insertion Press Machine is an innovative piece of equipment designed to streamline the production process of electric motor stators. As a leading Manufacturer, we take pride in our commitment to delivering high-quality machinery that enhances the efficiency and precision of stator manufacturing.

Four-Station Stator Insertion Press Machine is an advanced equipment launched to meet the needs of shaded-pole motors and inner-wound stator motors, and realizes the riveting of the main and auxiliary stators. It adopts an eight-point turntable structure to separate the human hands from the riveting station to improve the safety factor. The work is simple and easy to operate, and the efficiency is three times that of manual operation.

Four-Station Stator Press Machine Technical Specifications:

Four-Station Stator Press Machine Features:

1. Stability: Use Box-Type Turbine Reducer + Cam Divider To Drive The Indexing Plate To Ensure Stable Operation Of The Equipment

2. Safety: All Mechanical Moving Structural Parts Are Protected With Protective Covers To Ensure Safe Operation.

3. High Efficiency: The Production Cycle Can Reach 2.3-3s/Piece; The Main Stator Is Automatically Loaded

4. Intelligence: Automatically Senses Materials. When There Is No Material At The Work Station, The Pressure Head Automatically Stops Working.

5. Humanization: The Human-Machine Interface Displays Each Row Of Operating Data, And Related Management Work Becomes Simple. You Only Need To Collect Data From The Human-Machine Interface (Such As Output, Etc.)

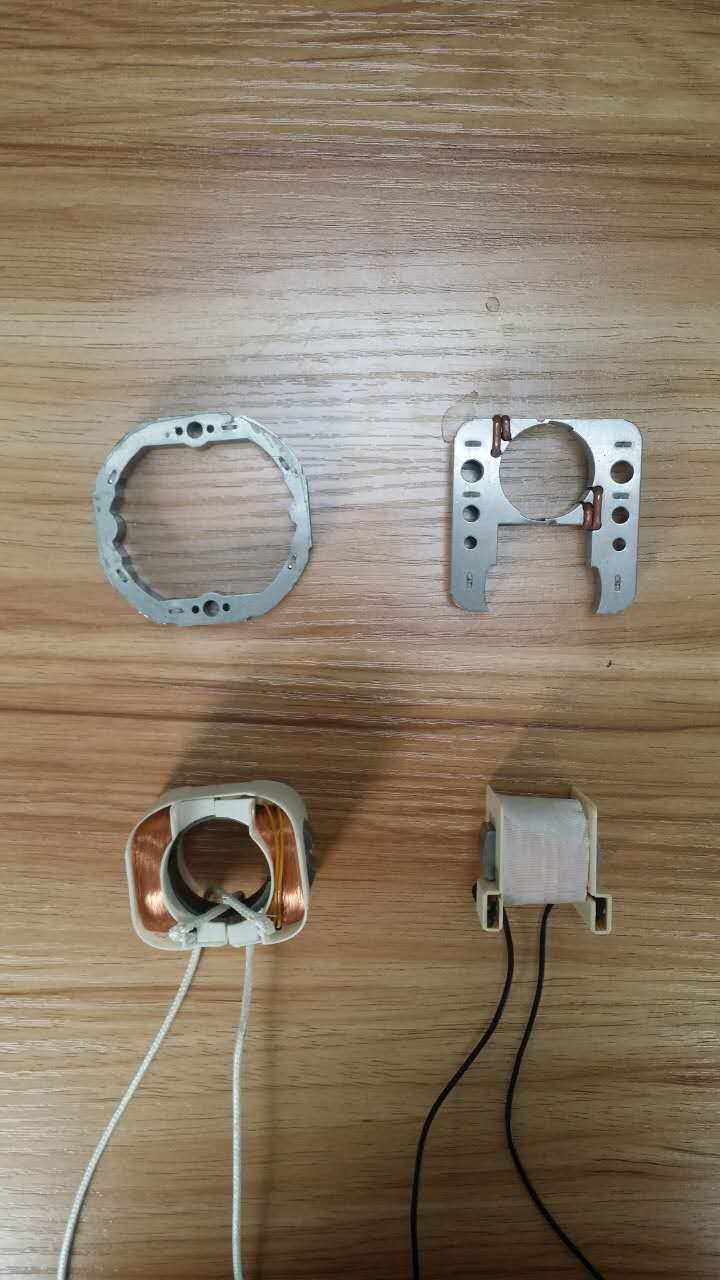

Processing Product Diagram:

Four-Station Stator Press Machine Applications:

Electric Motor Manufacturing: Used in the apparatus of electric motors, especially in the manufacturing of electrical engineering motors’ stators’ for use in automobile, household appliances and power tools.

Transformer Production: Optimal for transformer stator assembling allowing high accuracy and technology of processing.

Industrial Equipment: Used for integration of generators and other industrial machines that have a stator assembling.

Automation in Mass Production: Appropriate for plants with high efficiency target usage, high quantity of stators ending making at reasonable price for the labor cost and speed up production.

Four-Station Stator Press Machine FAQ:

What does the Four-Station Stator Press Machine do?

It’s a machine which stand aid machine that presses and inserts into the sttunator which has four stations to hold different parts of its assembly in a bid to increase the output of production for stators and makes it more uniform.

Can this machine handle different stator sizes?

Yes, the machine can be adjusted as per different stator size and shapes requirements thus suitable meeting non-standard production requirements.

How does the four-station system improve efficiency?

The four-station system provides a possibility of parallel or sequential execution of several processes which includes Scantime, thus cutting it down and enhancing the output of general productivity level.

What is the machine’s maintenance schedule and outline?

Basic maintenance activities that are regularly performed are checking the working mechanisms for wear out, cleaning the insertion mechanisms as well as examining the alignment to ensure that the precision and the performance are maintained.

Is it of a concern that the machine will be adaptively coordinated with the already working production lines?

Yes, the Four-Station Stator Press Machine is manufactured in a way that allows it to be incorporated into a working production line without hassles and may be modified to meet particular production requirements.
