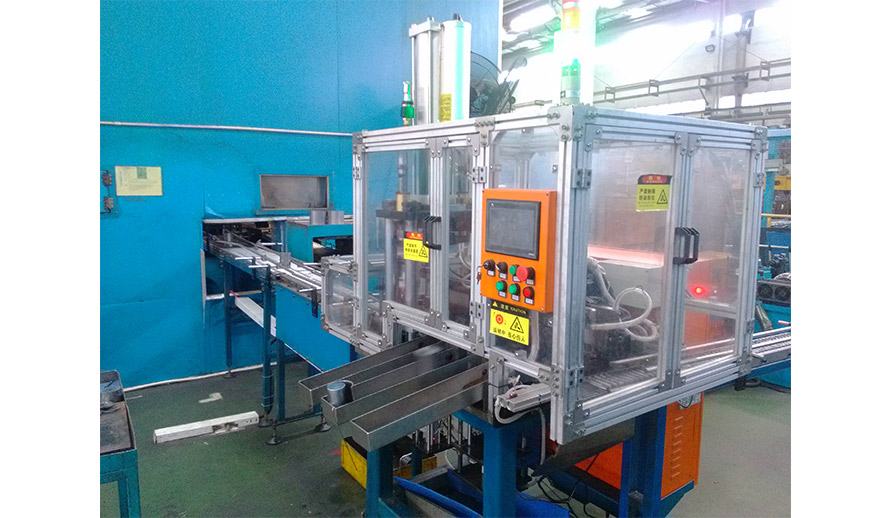

Rotor Automatic Lamination Machine
- Product Information
Rotor Automatic Lamination Machine is an advanced piece of equipment designed to cater to the specific needs of the motor manufacturing industry. As a leading Manufacturer, we specialize in creating highly efficient and reliable machinery that enhances the precision and speed of rotor lamination processes.
Rotor automatic lamination machine is engineered to provide a seamless and automated solution for the lamination of rotors, ensuring consistent quality and uniformity in every layer. The machine is designed to handle the intricate process of stacking and pressing laminations with minimal human intervention, significantly reducing the chances of errors and increasing overall productivity.
Rotor Automatic Lamination Machine is a kind of equipment for the later stage of motor stator and rotor production. Its function is to complete the shaping, compaction, misalignment detection and screening of the stator and rotor after the adjustment of the punch press. It is an important equipment to ensure the accuracy of motor production.
Technical Specifications:
Item | Technical Specifications |
Function | After The Rotor High Punching Is Completed, It Will Automatically Complete Lamination, Height Detection, Angle Detection, And Error Detection.A Series Of Functions Such As Measuring And Automatic Loading And Unloading Ensure Product Quality And Improve Production Efficiency. |
Save Personnel | 2-3 People/Shift |
Working Rhythm | 6s |
Working Method | Automatically Completed By The Workbench |
Power | 1.5kw |
Equipment Features:
1. Fully automated: from high punch discharging, completing all work, to the next process, completely unmanned
2. Complete functions: A large number of manufacturing processes are completed one by one on the equipment, simplifying the process
3. Safety: All dangerous moving parts are protected by protective covers and have corresponding safety sensors.
4. High efficiency: the production cycle is 5.5S/piece, saving 2-3 people/shift.
5. Humanization: The human-machine interface displays each row of operating data, and related management work becomes simple. You only need to collect data from the human-machine interface (such as output, etc.)
Rotor Automatic Lamination Machine Application:
1. Compressor Motor Efficiency: In the compressor industry, our machine ensures the precision lamination of rotors, which is critical for reducing core losses and increasing motor efficiency .
2. Automotive Motor Performance: For automobile motors, our Rotor Automatic Lamination Machine provides the high-pressure lamination necessary for withstanding the rigorous demands of automotive applications, ensuring consistent performance and reliability.
3. High-Pressure Rotor Finishing: The machine is designed to handle high-pressure finishing processes, making it ideal for applications where rotor durability and strength are paramount, such as in certain industrial equipment and high-speed motor applications.
4. Customizable Lamination Solutions: Our machine offers customizable solutions for rotor laminations, including material, thickness, tolerance, and slot shape, to meet the specific needs of different industries and applications .
Rotor Automatic Lamination Machine FAQs:
What materials is the Rotor Automatic Lamination Machine compatible with?

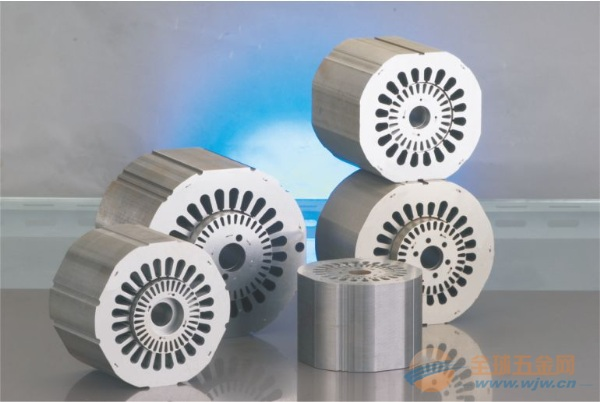

Rotor Automatic Lamination Machine is designed to handle a variety of magnetic materials, including but not limited to silicon steel, electrical steel, and other lamination materials commonly used in rotor production.
How does the machine ensure the precision of lamination stacking?
Rotor Automatic Lamination Machine utilizes precision guides and pressure systems to ensure that each lamination is accurately aligned and uniformly pressed, resulting in a consistent and high-quality rotor stack.
Can the Rotor Automatic Lamination Machine be customized to fit specific rotor sizes or shapes?
Yes, our Rotor Automatic Lamination Machine can be tailored to accommodate different rotor sizes and shapes, making it a versatile solution for diverse manufacturing needs.
What is the typical production capacity of the Rotor Automatic Lamination Machine?
The production capacity of our machine is impressive, allowing for the efficient completion of large orders within short timeframes while maintaining high standards of quality.
